Pneumatic rock drilling solutions by Ripamonti Drilling Equipment.
As the exclusive United States distributor for Ripamonti, WORD Rock Drills proudly offers this premier line of high-quality drilling machines to accompany our standard lineup of skid steer and excavator attachments. Word Rock Drills offers knowledgeable, efficient, and turnkey solutions for rock drilling projects across a variety of applications within the construction industry.
Why WORD Rock Drills?
WORD Rock Drills saves you time, money, and frustration.
- Versatile Drilling Solutions to Fit Your Project
- Adaptable Machine Capabilities
- Problem-Solving Inventory and Expertise
- Timely Delivery
- Personal and Professional Customer Service
BIRDIE
SPEEDY DRILL
DRILLING MACHINES ON THE JOB WHEN YOU NEED THEM
Keep Drilling, Keep Working
Ripamonti rock drill attachments offer solutions for a variety of applications including Soil Nailing, Hollow Bar Installation, Compaction Grouting, Blasting, Dewatering, Anchoring, Drilling, Tiebacks, Micropiles, and More.

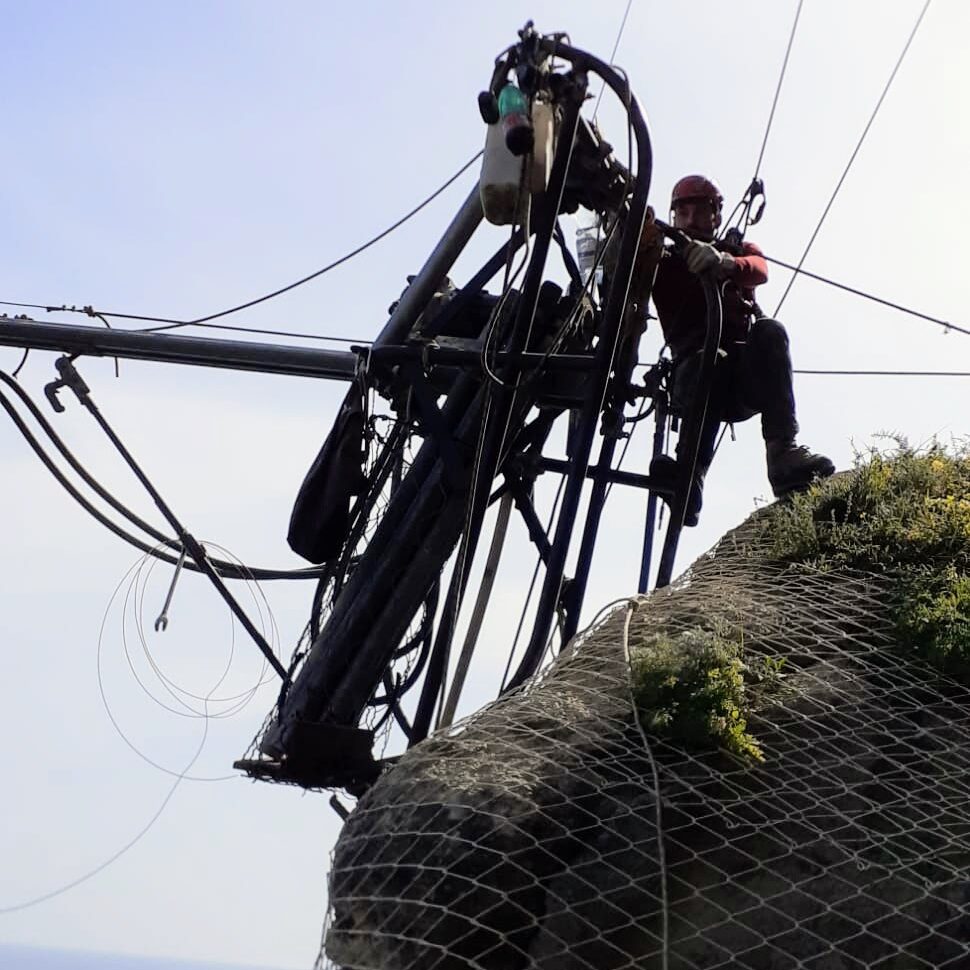

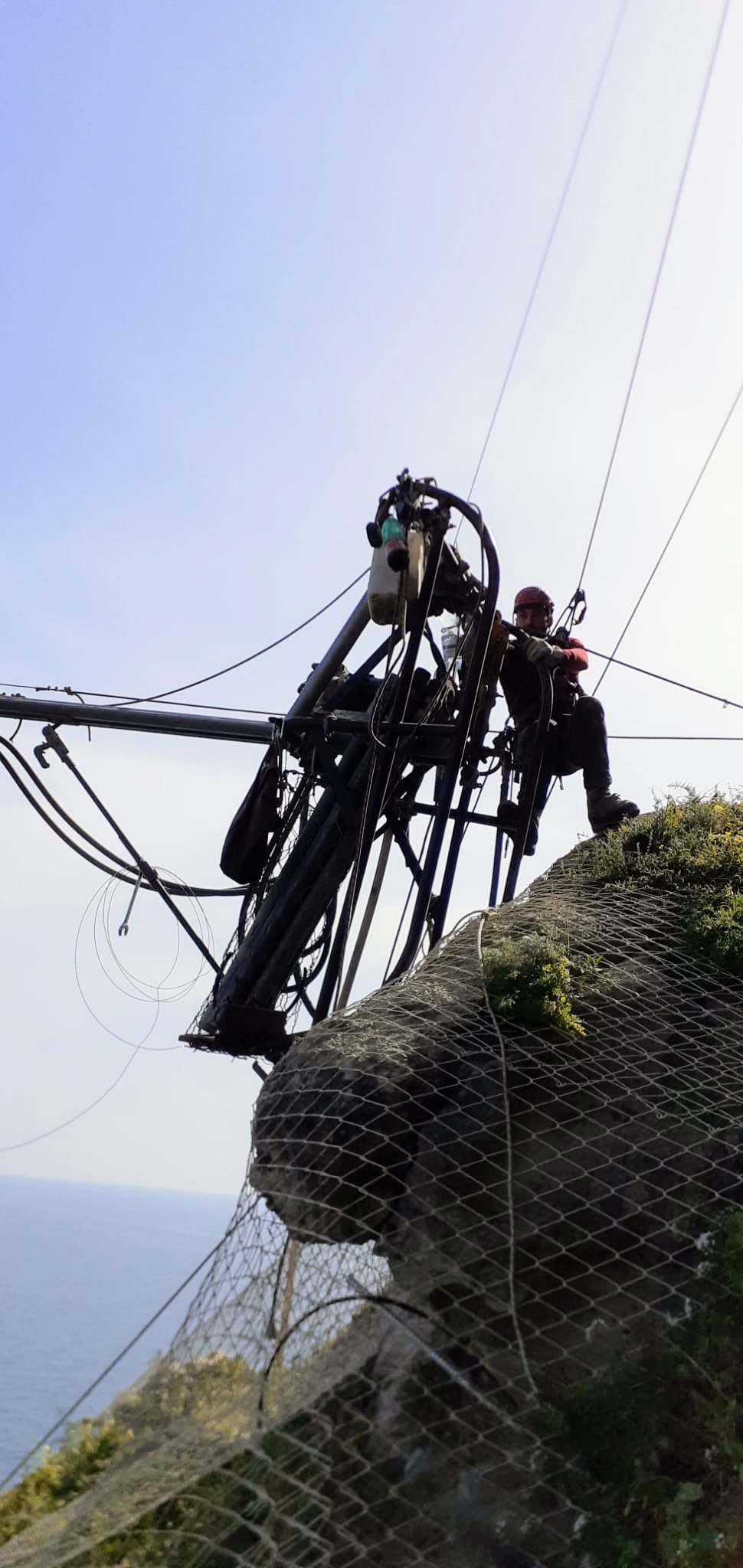

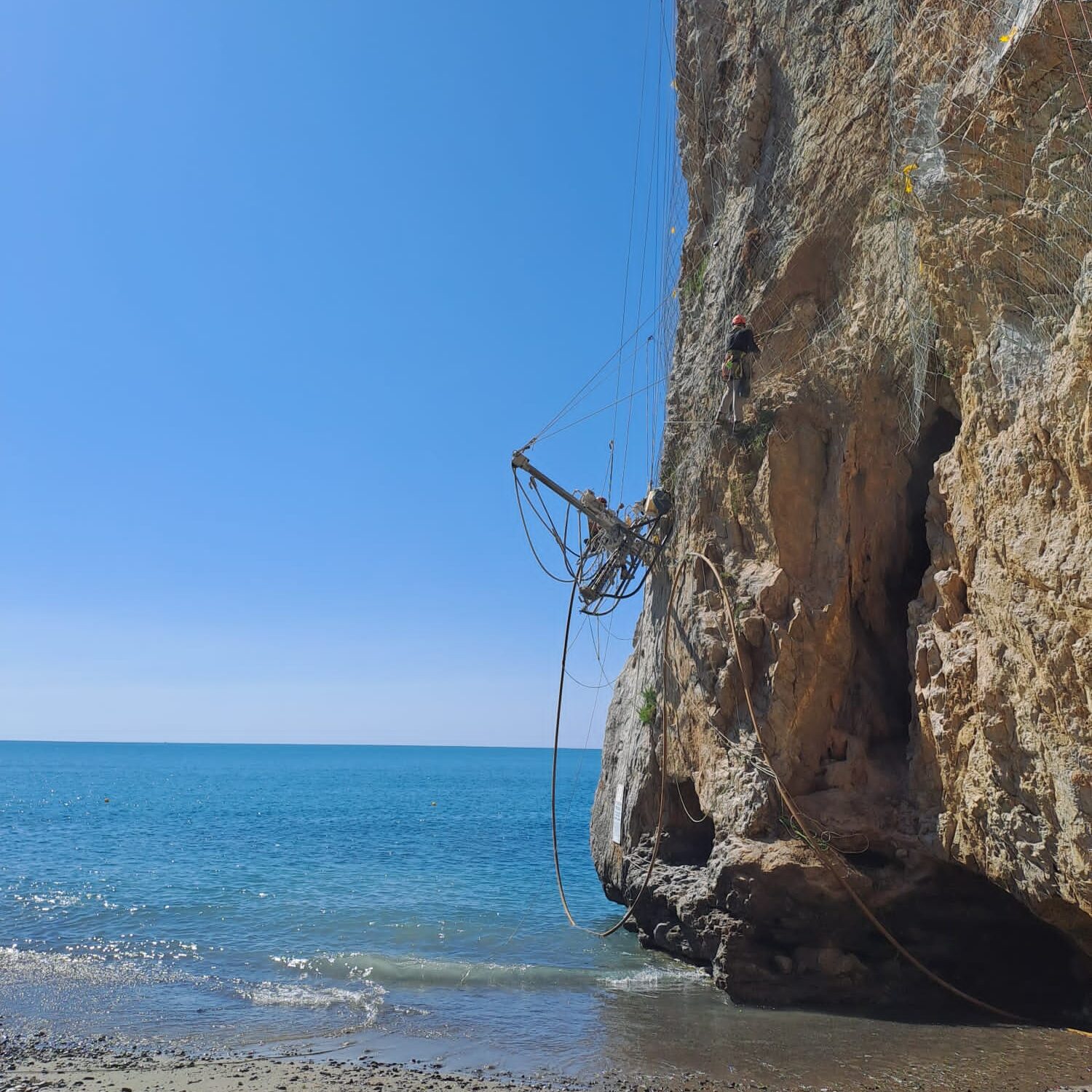

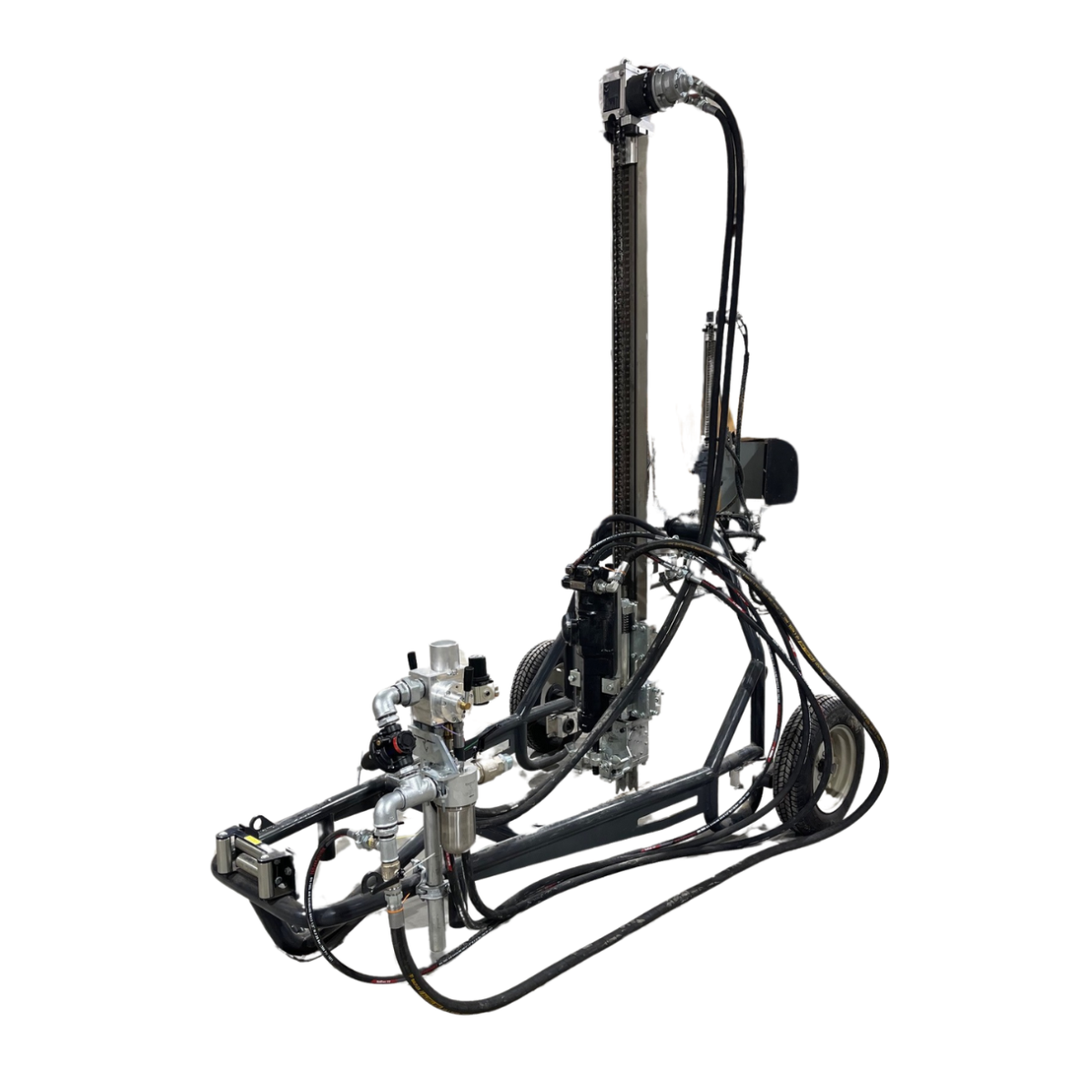

Speedy Drill
Versatile Geotechnical Drilling Solution for Limited Access Applications
The Speedy Drill is a highly adaptable drilling solution designed for challenging geotechnical applications. Perfect for limited access sites, this lightweight and compact drill is compatible with various carriers, including wagons, sleds, and excavators. It can drill holes ranging from 1.5″ to 6″ in diameter and features a 1800mm stroke, allowing for efficient drilling in 5′ sections. With its capability to operate on an air compressor (minimum 185cfm) for hammer function, the Speedy Drill ensures reliable and effective performance in a variety of drilling conditions.
Key Specifications:
- Hole Size Range: 1.5″ – 6″
- Compatibility: 4″ DTH (Down-The-Hole) hammers
- Air Compressor Requirement: Minimum 185cfm for hammer function
- Stroke Length: 1800mm
- Drilling Capacity: 5′ sections
- Carrier Compatibility: Wagon, sled, and excavator
- Assembly: On-site assembly is available for areas with transportation restrictions
- Transport: Helicopter Transportation Capabilities
Key Features:
- Versatility for Limited Access: The Speedy Drill is an ideal choice for limited-access geotechnical drilling, making it perfect for areas where maneuverability is limited.
- Adaptable Carrier Options: Easily customized to fit sled, wagon, or excavator carriers for maximum flexibility on different terrains.
- Lightweight and Easy to Transport: Designed for easy transportation and quick setup, reducing downtime and increasing efficiency on-site.
- Air-Powered Operation: Functions entirely on an air compressor, simplifying the power requirements and allowing for versatile operation in remote locations.
Applications:
The Speedy Drill is specifically engineered for critical geotechnical drilling tasks in challenging environments, such as:

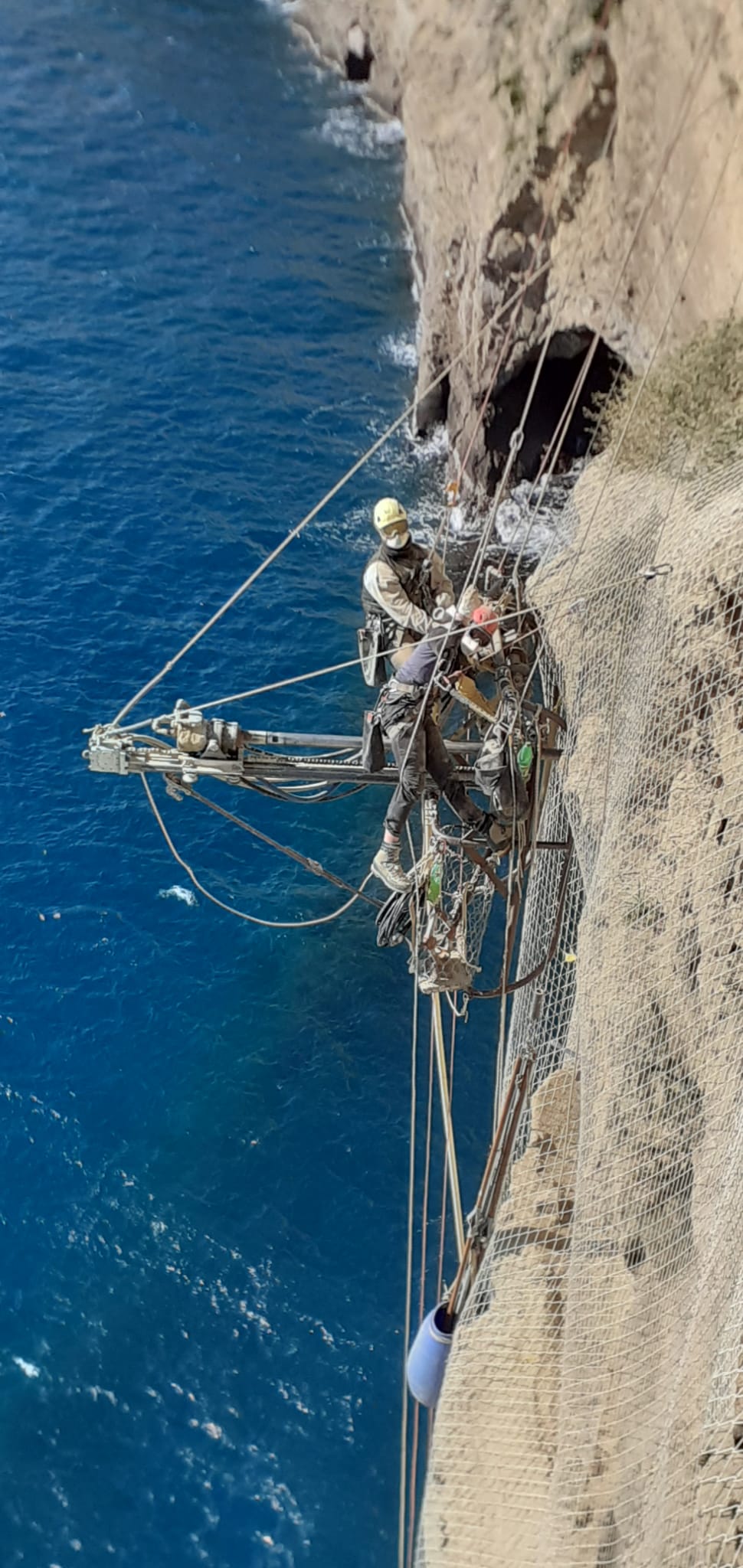

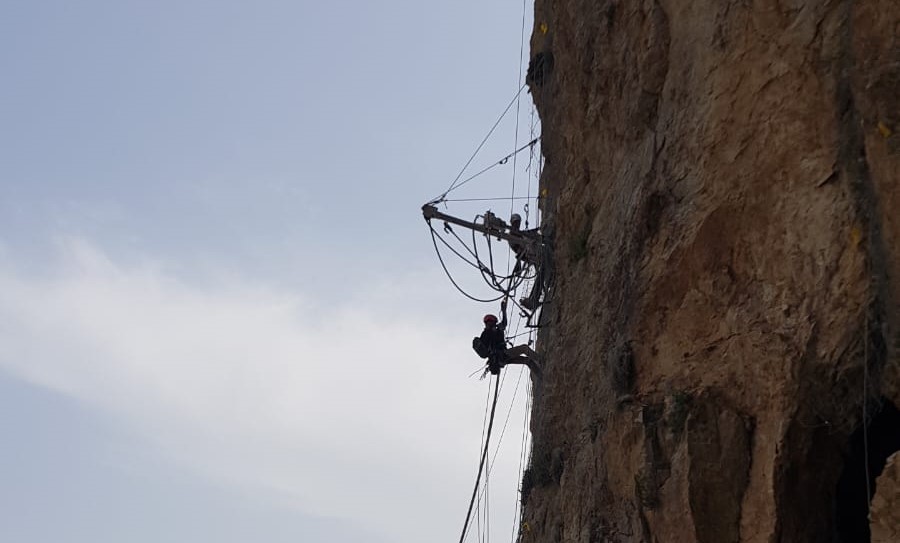

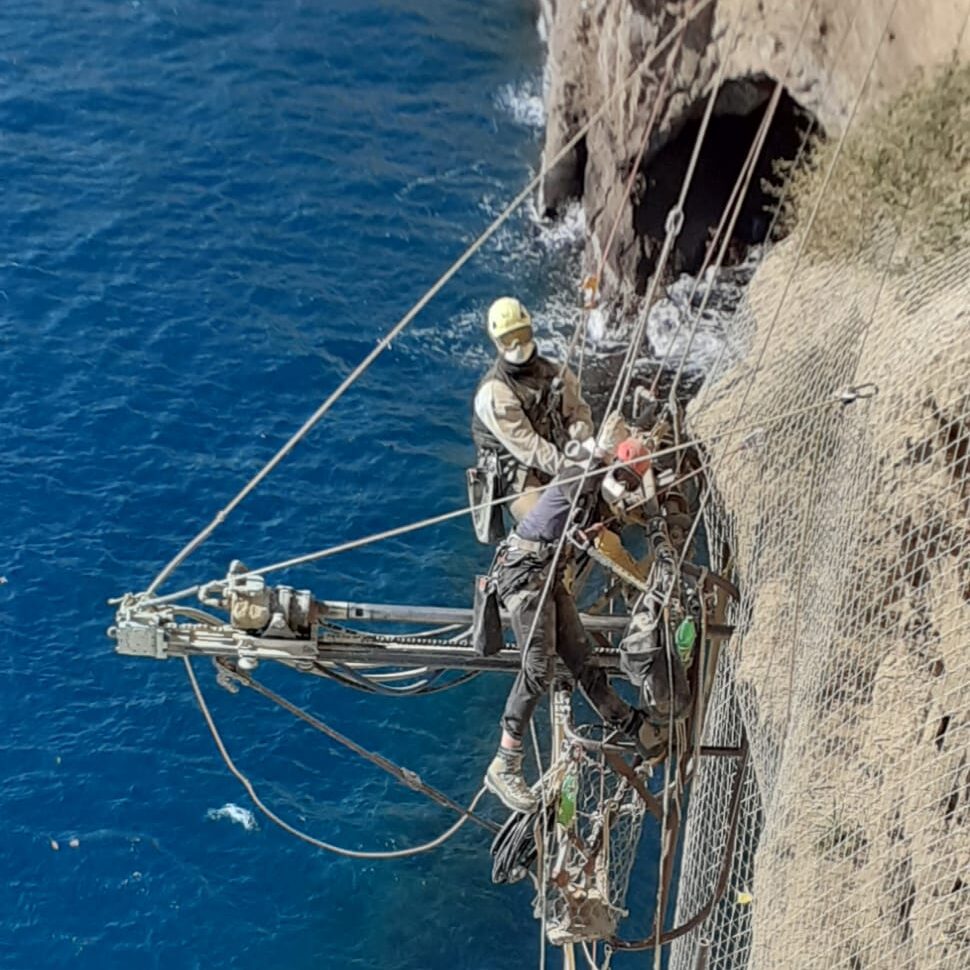

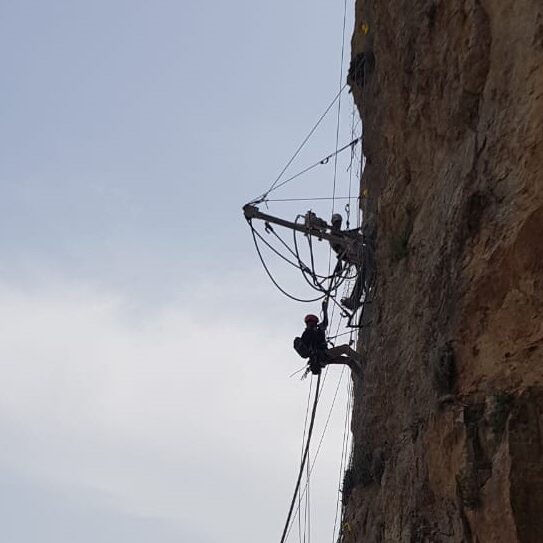

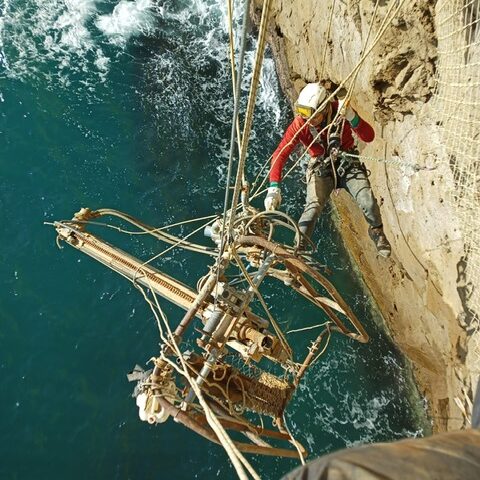

- Rockfall Mitigation: Provides reliable drilling for stabilizing rockfall-prone areas.
- Slope Stabilization: Effective for creating anchor points and retaining walls to stabilize slopes.
- Geostabilization: Supports a variety of geostabilization techniques in difficult terrains.
- Steep Slope Drilling: Optimized for drilling on steep slopes where traditional equipment cannot access.
Why Choose the Speedy Drill?
If you’re looking for a reliable, versatile, and lightweight drilling solution for limited-access applications, the Speedy Drill is the answer. Its adaptability to different carriers, air-powered operation, and ability to handle challenging geotechnical tasks make it a must-have for professionals in the field.
Contact Us to Learn More about the Speedy Drill and experience efficient, effective, and versatile drilling for all your geotechnical needs.

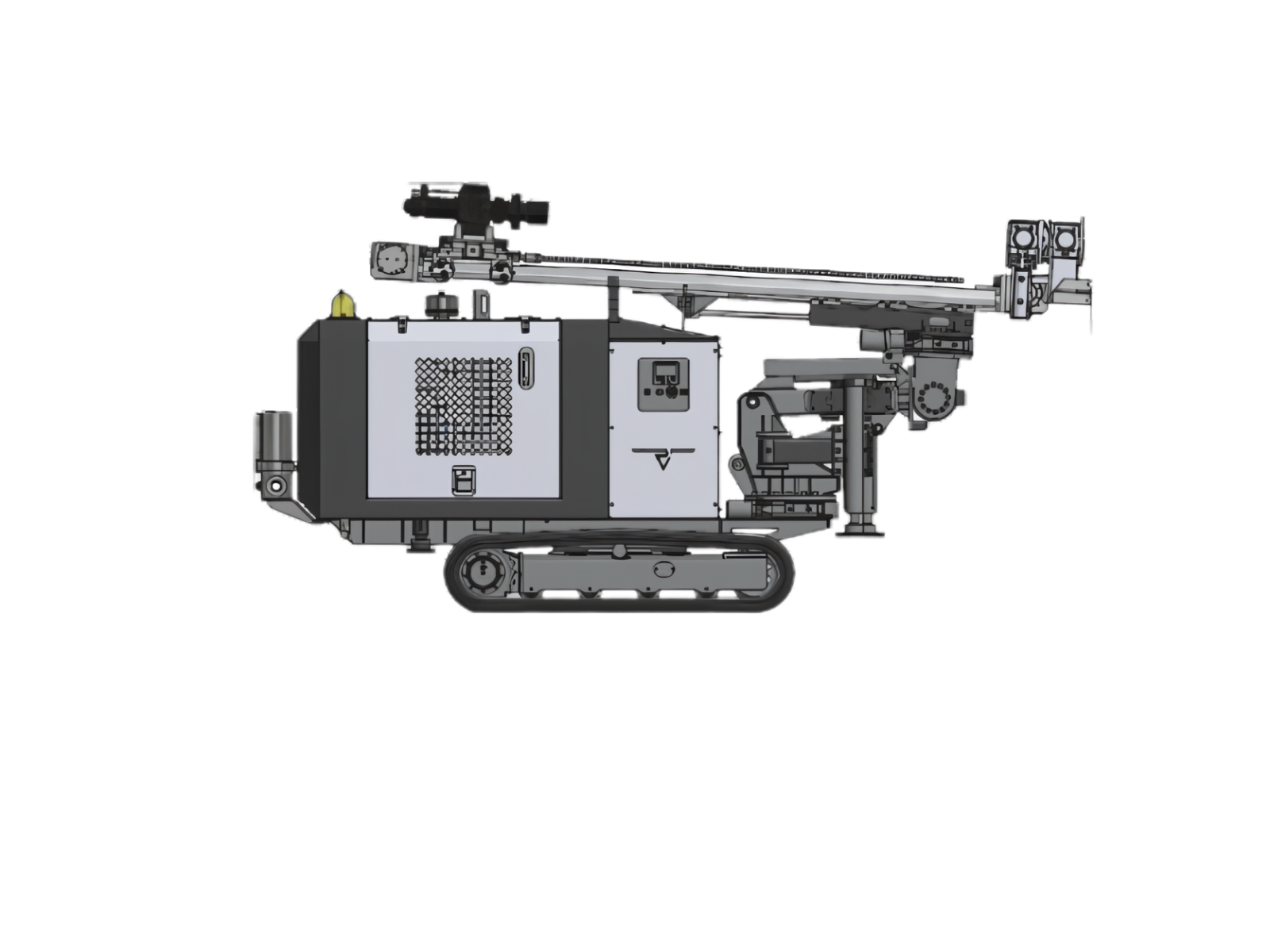

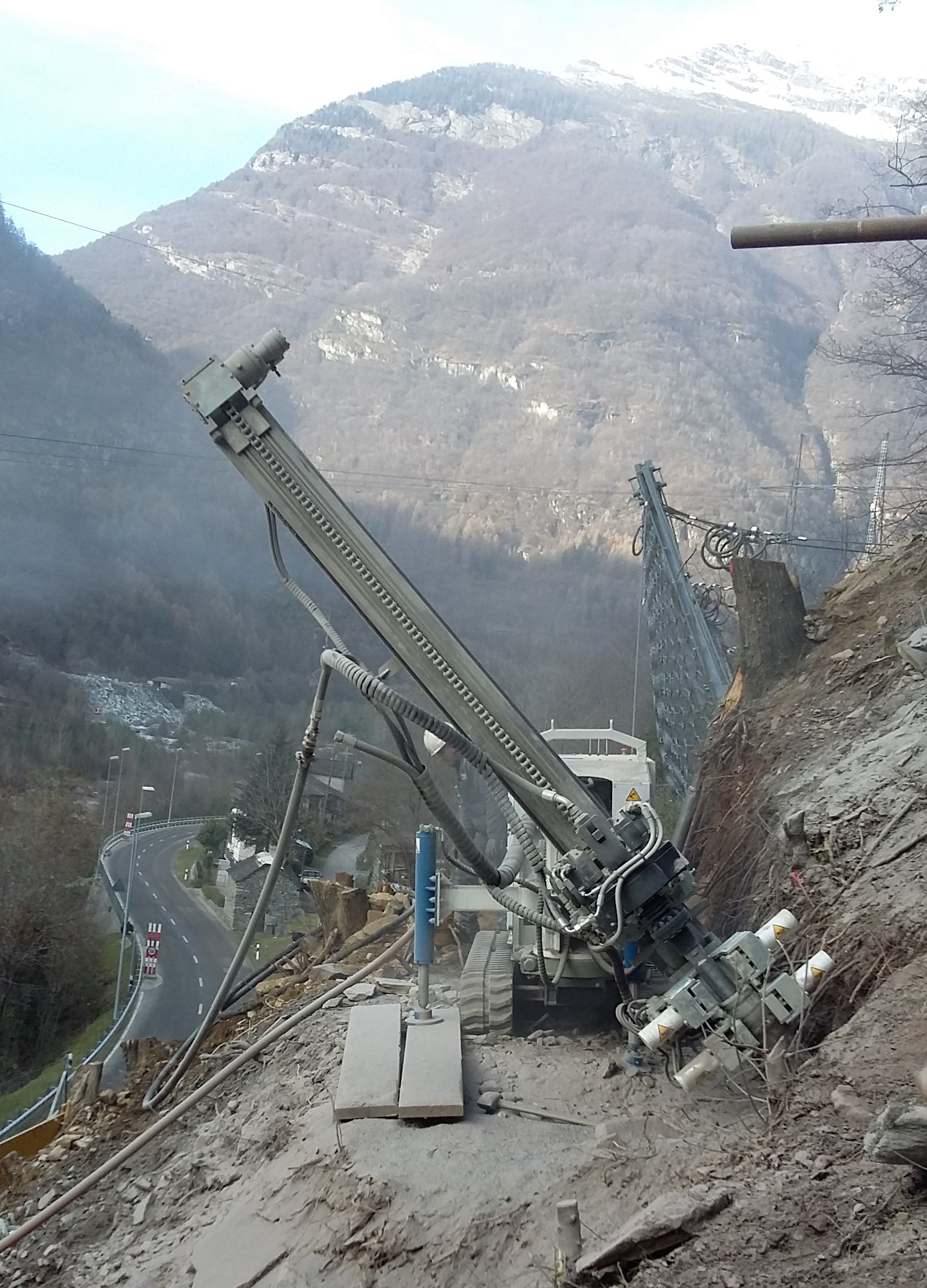

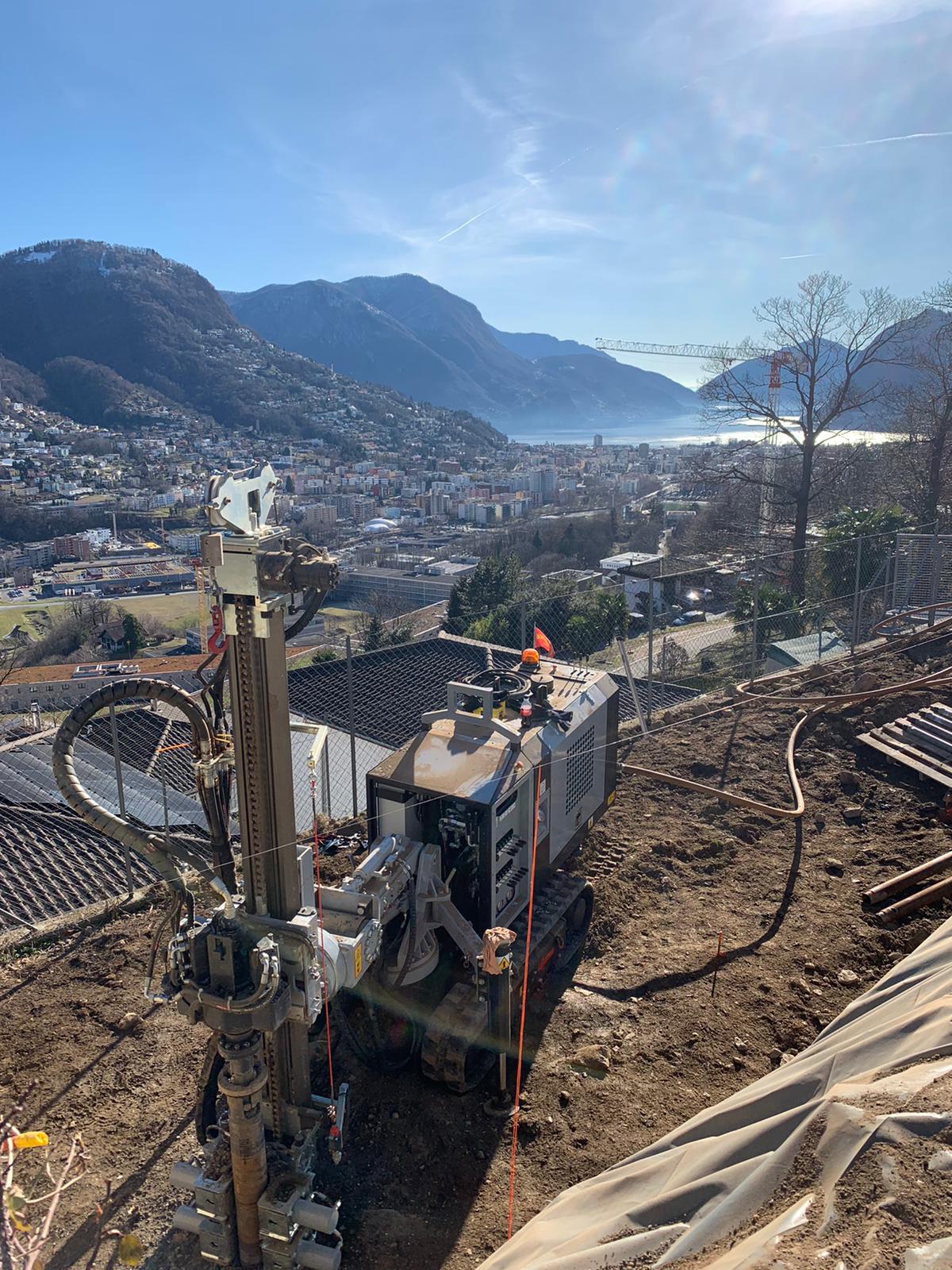

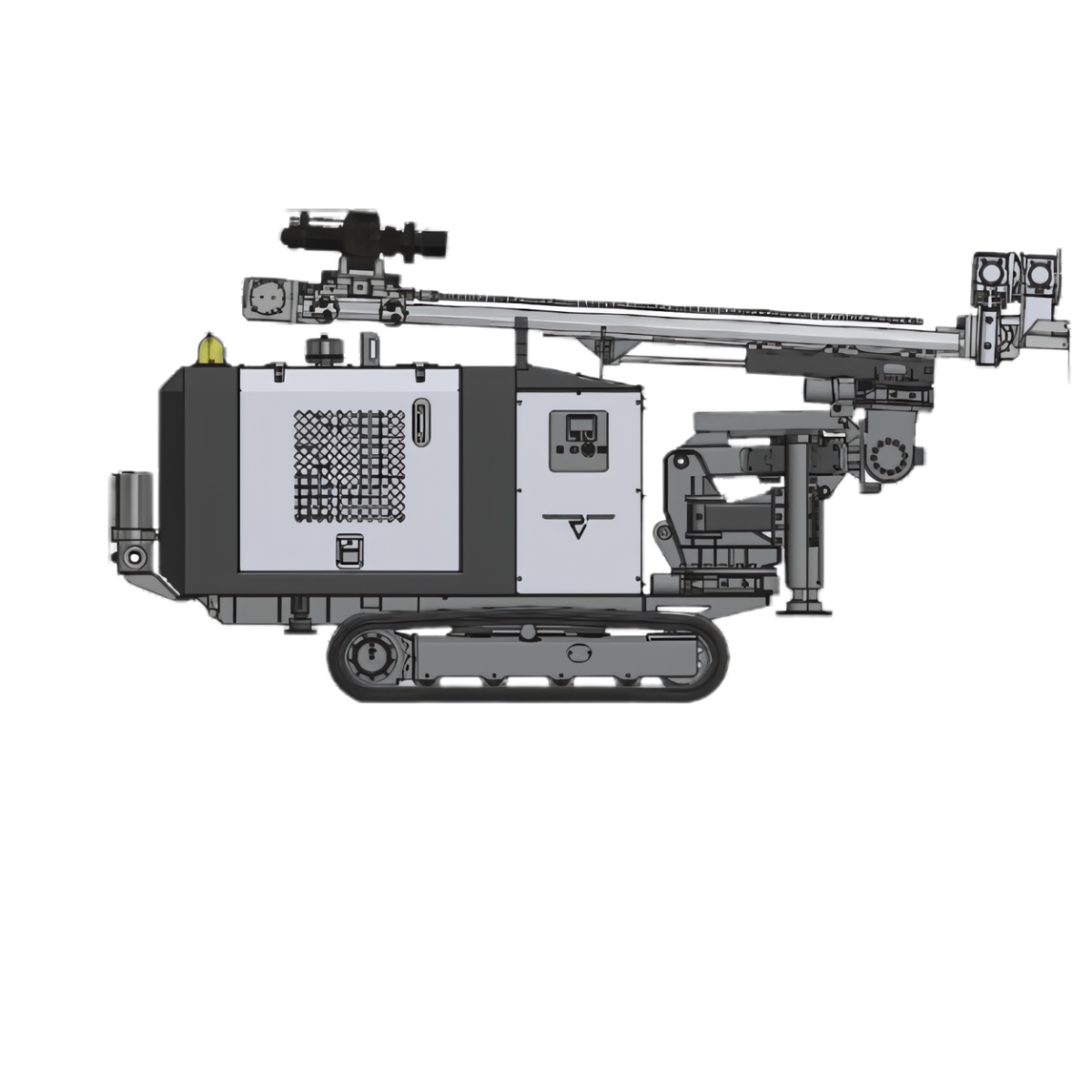

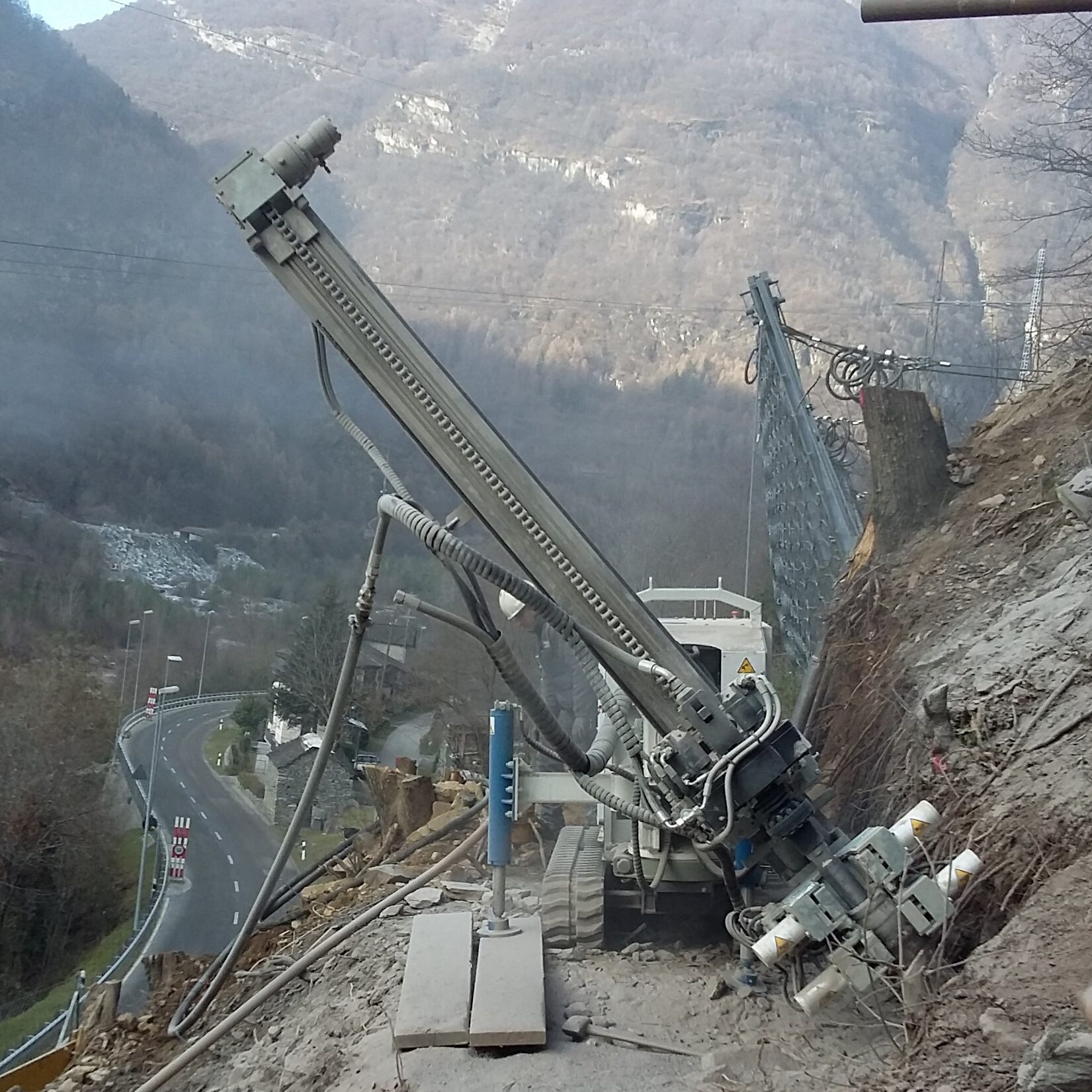

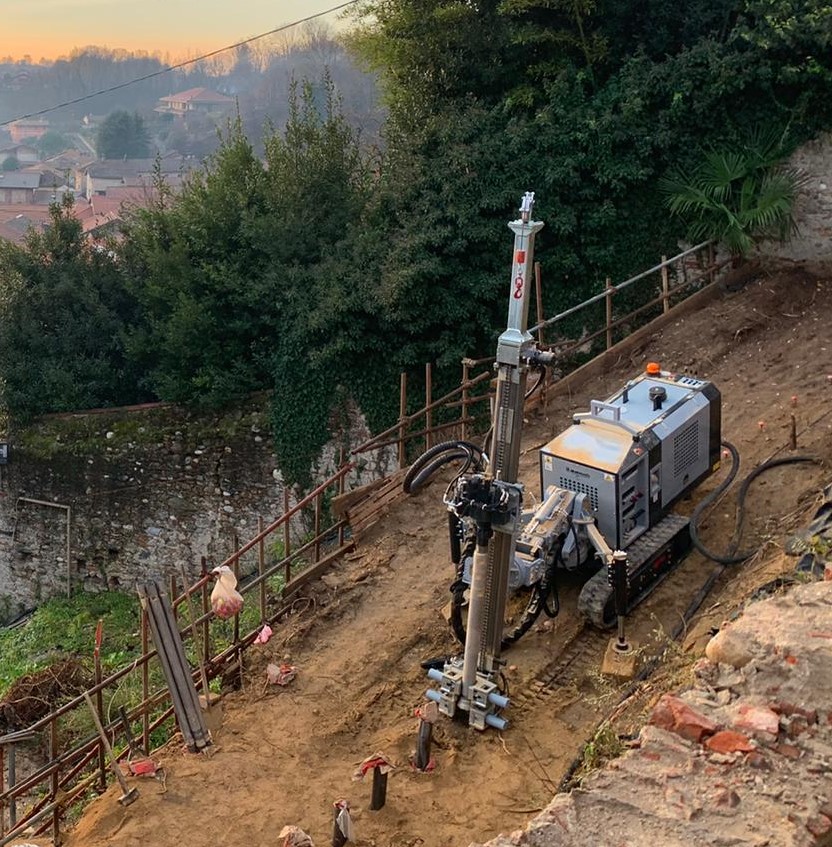

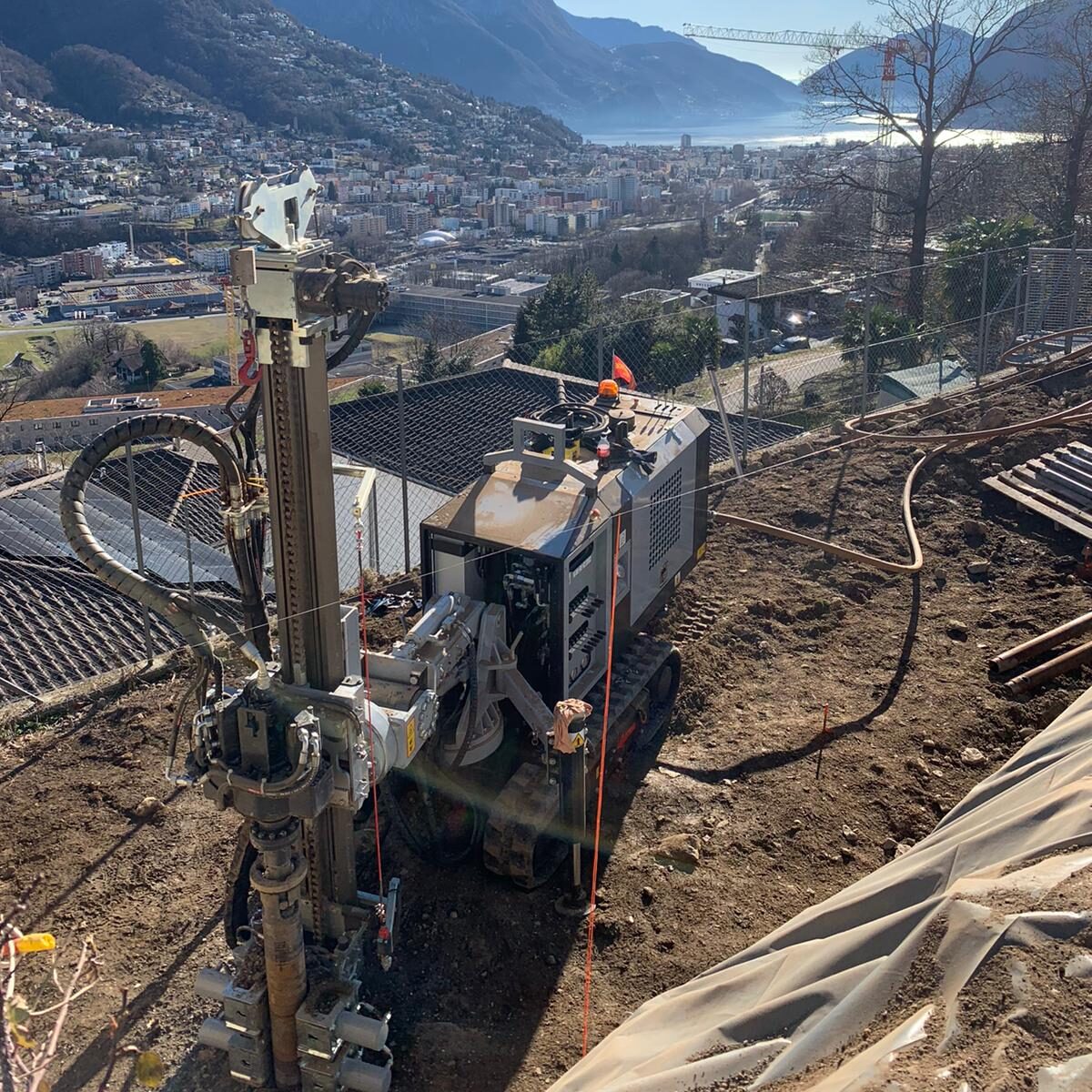

Birdie
Advanced Hydraulic All-in-One Drilling Machine for Foundation and Mining Applications
The Birdie is a state-of-the-art, hydraulic-powered all-in-one drilling machine designed for precision and versatility in foundation, micropile, and mining applications. Engineered for high performance, this drilling rig offers a wide range of hole sizes from 1.5″ to 8″ and is compatible with both 6″ DTH hammers and interchangeable drifter options. With its 2300mm stroke and capability to drill in 6′ sections, the Birdie is built to handle even the most challenging drilling environments. The detachable power pack and 360° rotation further enhance maneuverability and adaptability, especially in limited access areas.
Key Specifications:
- Hole Size Range: 1.5″ – 8″
- Compatibility: 6″ DTH (Down-The-Hole) hammers and interchangeable drifters
- Air Compressor Requirement: Minimum 350cfm for hammer function
- Stroke Length: 2300mm
- Drilling Capacity: 6′ sections
- Weight: 16,500 lbs
- Power Source: Hydraulic
- Rotation: 360° for maximum maneuverability
- Configuration: Detachable power pack for limited access
Key Features:
- Versatile Hydraulic All-in-One Design: Optimized for foundation industry needs, the Birdie offers flexibility and efficiency for various drilling projects.
- Advanced Controls for Precision: The Birdie is equipped with advanced controls, providing increased accuracy during drilling operations.
- 360° Rotation Capability: Enhances maneuverability, allowing for easy positioning and operation in confined or challenging spaces.
- Detachable Power Pack: The removable power pack makes the Birdie perfect for limited access configurations, enhancing its adaptability in various terrains and environments.
Applications:
The Birdie is designed to meet the demands of a variety of drilling applications, including:
- Limited Access Drilling: Ideal for sites with restricted entry points or confined spaces.
- Hollow Bar Drilling: Suitable for hollow bar installations, providing reliable performance in foundation construction.
- Micropiles: Effective for drilling micropiles, particularly in foundation reinforcement and underpinning projects.
- Mining: Robust enough for mining applications where precision and flexibility are crucial.
Why Choose the Birdie?
For professionals in the foundation, geotechnical, and mining industries, the Birdie is the ultimate hydraulic-powered drilling solution. Its all-in-one design, advanced controls, and versatile configurations make it a reliable choice for a wide range of applications. Whether you’re working in limited access areas or need a powerful machine for hollow bar or micropile installations, the Birdie offers the adaptability and performance you need.
